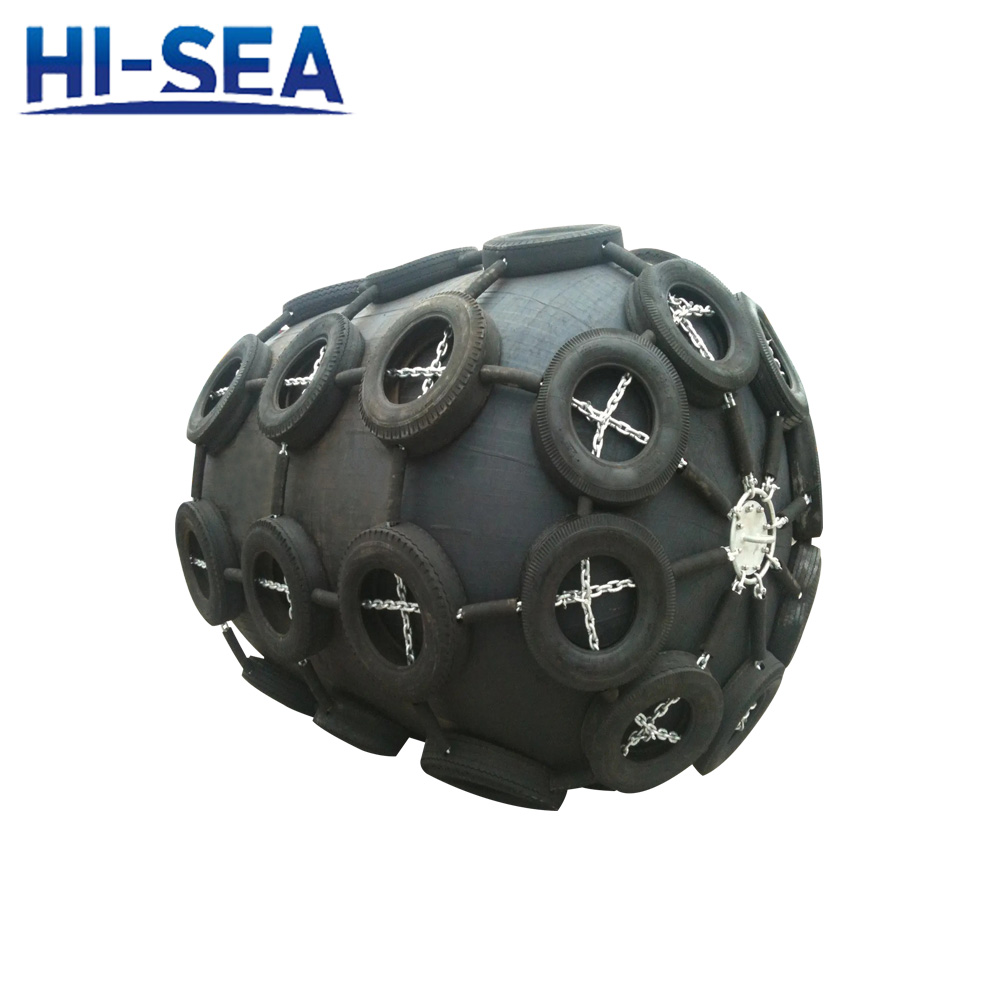

Floating fenders F2500×5000L is one the super large standard size of floating fenders with the diameter of 2500mm and the length of 5000mm. They are generally used for large docks and large vessels which will cause large impacts force on berthing process. They can protect the structures and vessels to the utmost.
Floating fenders are designed to be light so that they can easily float on the water. They can be so light because of the materials of the packing layer. The layer is manufactured with light, elastomeric but robust materials, and some types of floating fenders will be filled with air or hydrogen. The rubber layer is also strong and robust and elastic enough to satisfy the requirement of the fenders.
The floating fenders have chosen a different installation method from other fixed fenders. The floating fenders are connected with the chains and the other ends of the chains are fixed onto the dock structures. The floating fenders then can floating on the water and rise and fall along with the ups and downs of the sea level.
Floating Fenders Drawing and Dimensions:
| Модель |
D(миллиметр) |
MAXIMUM DEVIATION(%) |
L(миллиметр) |
MAXIMUM DEVIATION(%) |
| F2500×5000L |
2500 |
±4 |
5000 |
±4 |
Функции:
- Low how pressure
- Good performance on inclined berthing
- Adaptable to the tide
- Easy to install and move
- Not affected by the tide
- Strong against shearing force
- High energy absorption and low reaction force
