Wing type Rubber Fender Drawing and Dimensions:
| A |
B |
H |
T |
C |
P |
L |
n |
| 540 |
430 |
280 |
30 |
150 |
700 |
1000 |
2 |
| 540 |
430 |
280 |
30 |
150 |
600 |
1500 |
3 |
| 540 |
430 |
280 |
30 |
145 |
570 |
2000 |
4 |
| 540 |
430 |
280 |
30 |
150 |
550 |
2500 |
5 |
| 540 |
430 |
280 |
30 |
150 |
540 |
3000 |
6 |
| 600 |
490 |
300 |
30 |
150 |
700 |
1000 |
2 |
| 600 |
490 |
300 |
30 |
150 |
600 |
1500 |
3 |
| 600 |
490 |
300 |
30 |
145 |
570 |
2000 |
4 |
| 600 |
490 |
300 |
30 |
150 |
550 |
2500 |
5 |
| 600 |
490 |
300 |
30 |
150 |
540 |
3000 |
6 |
|
NOTA (unidades:milímetro)
|
El plano y las cotas son de referencia. Otras especificaciones también están disponibles. Póngase en contacto con nosotros para obtener información detallada.
Wing type Rubber Fenders in Factory:
Introducción:

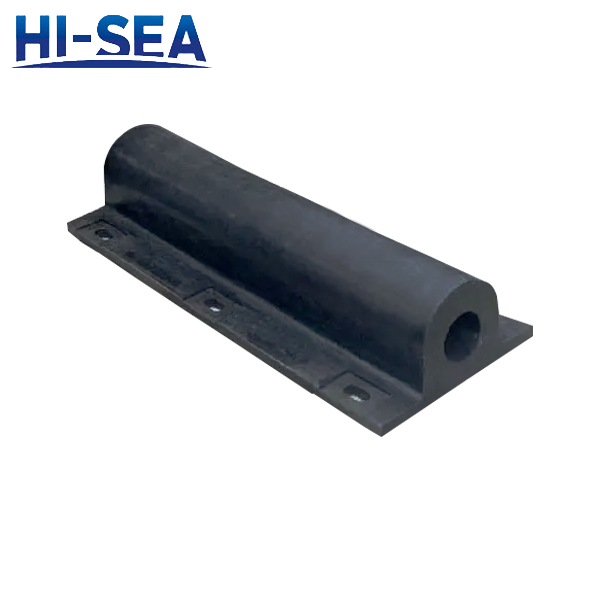

Wing type rubber fender is designed based on the D type rubber fender. With different shape of bores, Wing type rubber fender can be divided into three types of fenders, GO type rubber fender(as the above pictures shows), and GD type rubber fender. Different from D type rubber fender with one-row anchor bolts, wing type rubber fender has double, so does the anchoring force. It is frequently used at small docks and often applied as backup protection for large docks.
Accesorios y fijaciones:
- Pernos de anclaje
- Bolts and nuts
- Washers
