Wheel Fender Drawing and Dimensions:
| A |
B |
C |
D |
H |
F |
Deflexión |
| 1700 |
1000 |
1450 |
1080 |
900 |
460 |
400 |
| 2000 |
1200 |
1750 |
1300 |
1000 |
510 |
500 |
| 2650 |
1500 |
2200 |
1750 |
1150 |
690 |
600 |
| 2750 |
1750 |
2550 |
1980 |
1250 |
760 |
700 |
| 3350 |
2200 |
3200 |
2550 |
1600 |
970 |
925 |
| 4200 |
2500 |
3750 |
2900 |
1700 |
1020 |
1200 |
|
NOTA (unidades:milímetro)
|
El plano y las cotas son de referencia. Otras especificaciones también están disponibles. Póngase en contacto con nosotros para obtener información detallada.
The Performance Curve de Wheel Fender

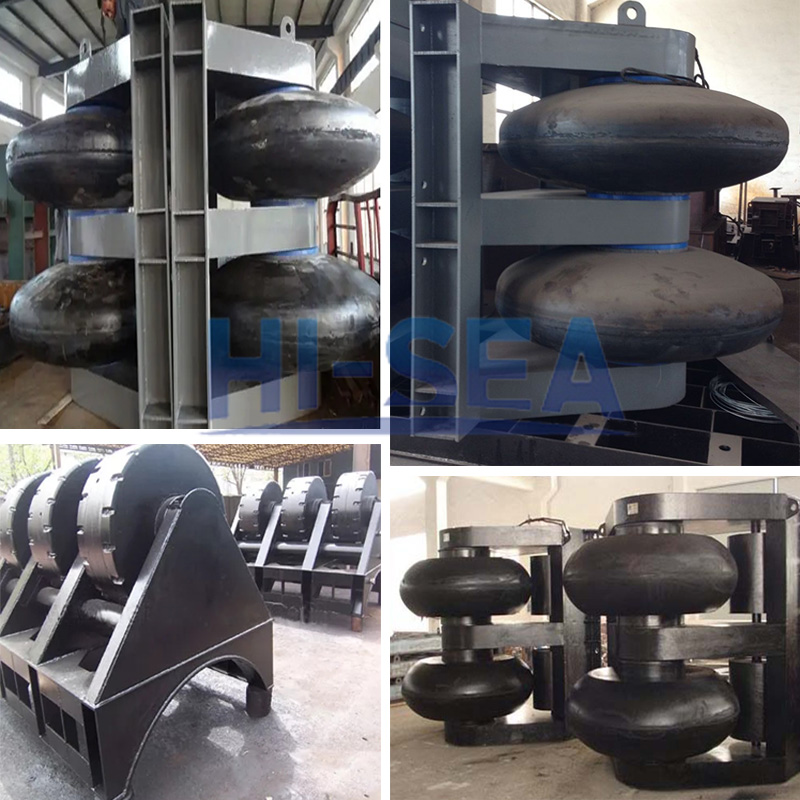

Wheel Fenders in Factory:
wheel fenders and roller fenders have the similar profile. The fenders in the pictures below can also be taken as roller fenders.
Introducción:
Wheel fender is designed as an energy absorbing elastomer mounted onto a rotating shaft with a frame. The maintenance free bearings are made of steel or composite materials, which are strong and robust. Wheel fender has the same functions and traits as roller fender. Además, they even have nearly the same structure. The main purpose of they are designed is to guide ships or vessels to berth in the right direction and lower down potential damages to the vessel hulls and the docks.
