W type tugboat fender is one of the most popular tugboat fenders. Usually, it is used on the bow and stern of a vessel. This type of fender is the same to W type rubber fender in profile. The difference is that the optional sizes and applications of W type tugboat fenders are constrained to accommodating to the tugboat while W type rubber fenders have flexible sizes according to various applications.
W Type Tugboat Fender Drawing and Dimensions:
| Modelo |
A |
B |
C |
D |
E |
| W320 |
320 |
200 |
100 |
180 |
280 |
| W400 |
400 |
250 |
110 |
220 |
350 |
| W480 |
480 |
300 |
135 |
265 |
420 |
| W500 |
500 |
360 |
125 |
260 |
370 |
| W500 |
500 |
400 |
170 |
298 |
420 |
| W500 |
500 |
150 |
90 |
250 |
420 |
| NOTA (unidades:milímetro) |
Other dimensions are available on request.
Instalación de W Type Tugboat Fenders:

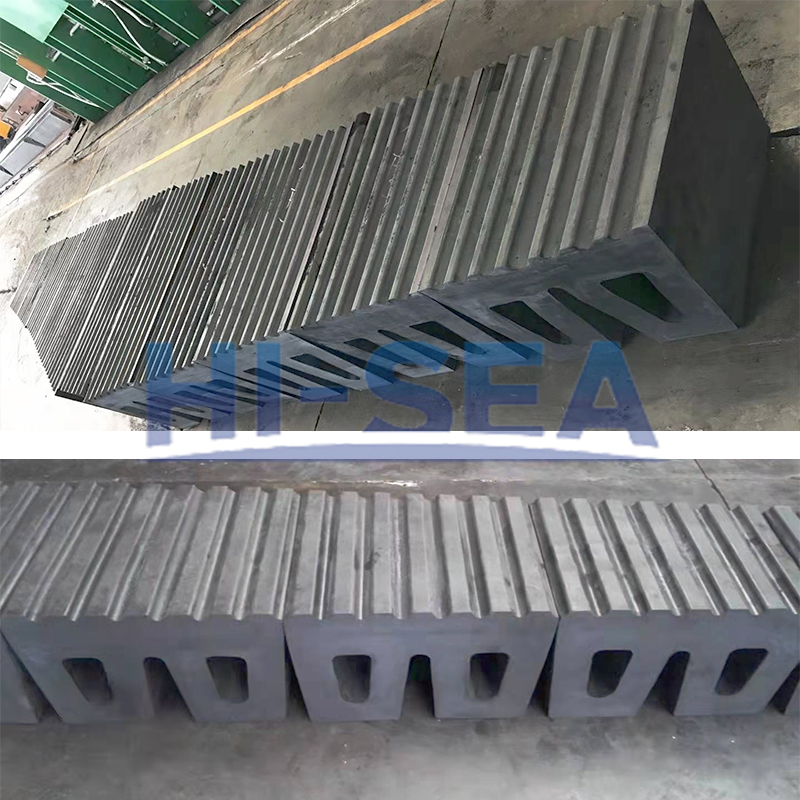

W Type Tugboat Fenders in Factory:
W Type Tugboat Fenders Application:
Introducción:
W type tugboat fenders originated from W type rubber fenders. They maintain the same profiles but in different sizes in applications. The rubber fender with a W shape is one of the most effective rubber fender across the world. The profile designed can provide greater contact area and smaller hull pressure. W type tugboat fender is especially suitable for tugboats, workboats and icebreakers. It can withstand and absorb overmuch collisions and impact. Most of W type tugboat fenders are installed at the bow and the stern of the ships, working as an efficient buffering stuff.
Accesorios y fijaciones:
- Bolts and nuts
- Washers
- Mounting rod pins
- Steel steel bar
