W type Rubber Fender Drawing and Dimensions:
| Modelo |
A |
B |
C |
D |
E |
| W320 |
320 |
200 |
100 |
180 |
280 |
| W400 |
400 |
250 |
110 |
220 |
350 |
| W480 |
480 |
300 |
135 |
265 |
420 |
| W500 |
500 |
360 |
125 |
260 |
370 |
| W500 |
500 |
400 |
170 |
298 |
420 |
| W500 |
500 |
150 |
90 |
250 |
420 |
| NOTA (unidades:milímetro) |
El plano y las cotas son de referencia. Otras especificaciones también están disponibles. Póngase en contacto con nosotros para obtener información detallada.
Instalación de W type Rubber Fenders:
W type Rubber Fenders in Factory:
W type Rubber Fenders Application:
Introducción:

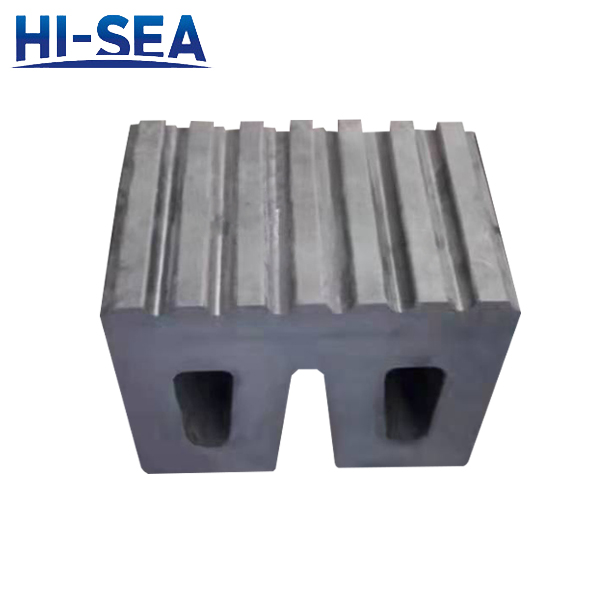

W Type rubber fender is usually used as a type of tugboat fender. It is one of the most effective rubber fender. The profile designed can provide greater contact area and smaller hull pressure. It is really popular in current market.
W type rubber fender is especially suitable for tugboats, workboats and icebreakers. It can withstand and absorb overmuch collisions and impact. Most of this kind of fenders are installed at the bow and the stern of the ships, working as an efficient buffering stuff.
Accesorios y fijaciones:
Bolts and nuts
Washers
Mounting rod pins
Steel steel bar
