Unit Element Fender Drawing and Dimensions:
| Modelo |
L |
B |
C |
F |
G |
J |
T |
Holes |
| UE1250
|
800 |
150 |
500
|
401
|
388
|
202
|
35-47
|
2+2 |
| 850 |
175 |
2+2 |
| 900 |
200 |
2+2 |
| 950 |
225 |
2+2 |
| 1000 |
250 |
2+2 |
| 1050 |
275 |
2+2 |
| 1100 |
300 |
2+2 |
| 1150 |
325 |
2+2 |
| 1200 |
350 |
2+2 |
| 1250 |
375 |
2+2 |
| 1500 |
250
|
3+3 |
| 2000 |
4+4 |
| UE14
|
900 |
200 |
500
|
454
|
445
|
228
|
35-50
|
2+2 |
| 1000 |
250 |
2+2 |
| 1100 |
300 |
2+2 |
| 1200 |
350 |
2+2 |
| 1500 |
250
|
3+3 |
| 2000 |
4+4 |
| UE1600 |
1000 |
250 |
500 |
507 |
480 |
261 |
45-50 |
2+2 |
| 1100 |
300 |
2+2 |
| 1200 |
350 |
2+2 |
| 1500 |
250
|
3+3 |
| 2000 |
4+4 |
| NOTA (unidades:milímetro) |
El plano y las cotas son de referencia. Otras especificaciones también están disponibles. Póngase en contacto con nosotros para obtener información detallada.
The Performance Curve de Unit Element Fender:

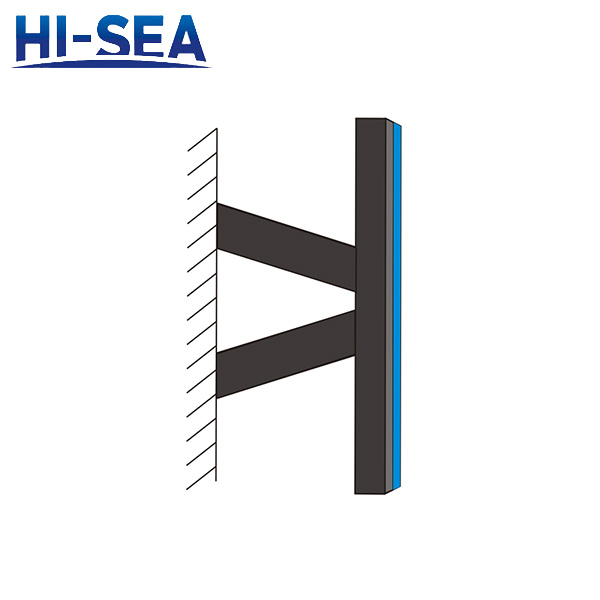

Instalación de Unit Element Fenders:
Unit Element Fenders in factory:
Aplicación de Unit Element Fenders:

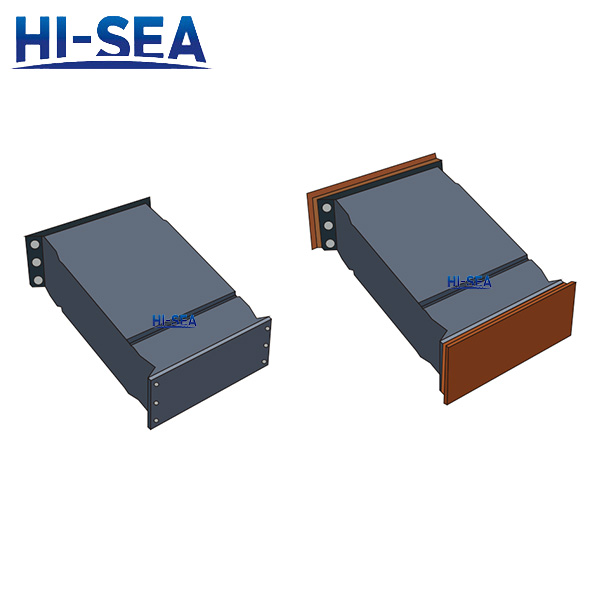

Introducción:
Unit element Fender is also called element fender or leg fender. The geometry of this fender is simple but provides it high performance. Designed as modular system, it is easy to install and maintain. Modular design of this fender also makes it available for frontal frame including steel panel and UHMW-PE pad. Requiring for little space to install, it can help to protect the facilities for the utmost. For many years, it has been widely used in all kinds of piers and docks.
Accesorios y fijaciones:
- Pernos y tuercas de anclaje
- Bolts and nuts
- Panel frontal
- Panel facial
Modular design, applicable for docks with limited installation space.
Sizes for all applications
High energy absorption and low wear resistance
Reasonable reaction force and shear force
Easy to install and maintain
All kinds of docks are applicable
Most dock fender systems are applicable
Performing especially well at installation space limited docks and terminals
