Solid Wing Type Rubber Fender Drawing and Dimensions:
| A (milímetro) |
B (milímetro) |
C (milímetro) |
D (milímetro) |
E (milímetro) |
Weight(kg/m) |
| 180 |
25 |
100 |
50 |
100 |
13 |
| 215 |
30 |
150 |
75 |
150 |
26 |
| 245 |
30 |
150 |
75 |
150 |
27 |
| 280 |
40 |
200 |
100 |
200 |
40 |
| 320 |
40 |
200 |
100 |
200 |
48 |
| 370 |
50 |
250 |
125 |
250 |
72 |
| 410 |
50 |
250 |
125 |
250 |
78 |
Solid Wing Type Rubber Fender Mounting Method:
Introducción:
Wing type fenders are further developed D fenders. Solid wing type rubber as one member of wing type rubber fender, is often used an alternative for the protection of vessels walls, docks and piers. With two-row anchor holes, it can be mounted to the structures by two rows of screws, which is more stable than D fender. It is usually embedded between two steel angles. This installation method is strong and easy to operate. Solid wing type rubber fender is highly resistant to various forces, and it is easy to replace if damaged.

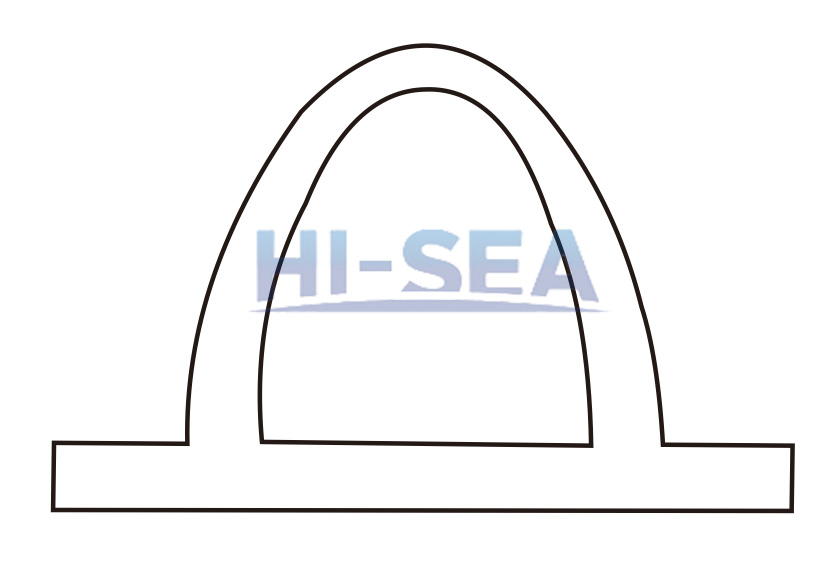

Special Wing Type Rubber Fender:
