Sling Type Pneumatic Fender Drawing and Dimensions:
| Fender size
D×L
(milímetro)
|
Initial pressure 0.5kg/cm2 |
Initial pressure 0.8kg/cm2 |
weight |
| Guaranteed energy absorption (GEA)
[kNm] |
Reaction force at GEA deflection
[kN] |
Hull pressure at GEA deflection
[kN/m2] |
Guaranteed energy absorption (GEA)
[kNm] |
Reaction force at GEA deflection
[kN] |
Hull pressure at GEA deflection
[kN/m2] |
Fender body
[kg] |
Cadena & tire net
[kg] |
Total
[kg] |
| 500×1000 |
6 |
64 |
132 |
8 |
85 |
174 |
25 |
55 |
80 |
| 600×1000 |
8 |
74 |
126 |
11 |
98 |
166 |
30 |
65 |
95 |
| 700×1500 |
17 |
137 |
135 |
24 |
180 |
177 |
45 |
100 |
145 |
| 1000×1500 |
32 |
182 |
122 |
45 |
239 |
160 |
60 |
110 |
170 |
| 1000×2000 |
45 |
257 |
132 |
63 |
338 |
174 |
75 |
150 |
225 |
| 1200×2000 |
63 |
297 |
126 |
88 |
390 |
166 |
110 |
180 |
290 |
| 1350×2500 |
102 |
427 |
130 |
142 |
561 |
170 |
170 |
210 |
380 |
| 1500×3000 |
153 |
579 |
132 |
214 |
761 |
174 |
220 |
400 |
620 |
| 1700×3000 |
191 |
639 |
128 |
267 |
840 |
168 |
250 |
520 |
770 |
| 2000×3500 |
308 |
875 |
128 |
430 |
1150 |
168 |
360 |
670 |
1030 |
| 2500×4000 |
663 |
1381 |
137 |
925 |
1815 |
180 |
650 |
830 |
1480 |
| 2500×5500 |
943 |
2019 |
148 |
1317 |
2653 |
195 |
860 |
1050 |
1910 |
| 3300×4500 |
1175 |
1884 |
130 |
1640 |
2476 |
171 |
1100 |
1600 |
2700 |
| 3300×6500 |
1814 |
3015 |
146 |
2532 |
3961 |
191 |
1660 |
2300 |
3960 |
| 3300×10600 |
3067 |
5257 |
158 |
4281 |
6907 |
208 |
3000 |
4700 |
7700 |
| 4500×9000 |
4752 |
5747 |
146 |
6633 |
7551 |
192 |
3800 |
3680 |
7480 |
| 4500×12000 |
6473 |
7984 |
154 |
9037 |
10490 |
202 |
7000 |
8570 |
15570 |
Sling Type Pneumatic Fender Applications:

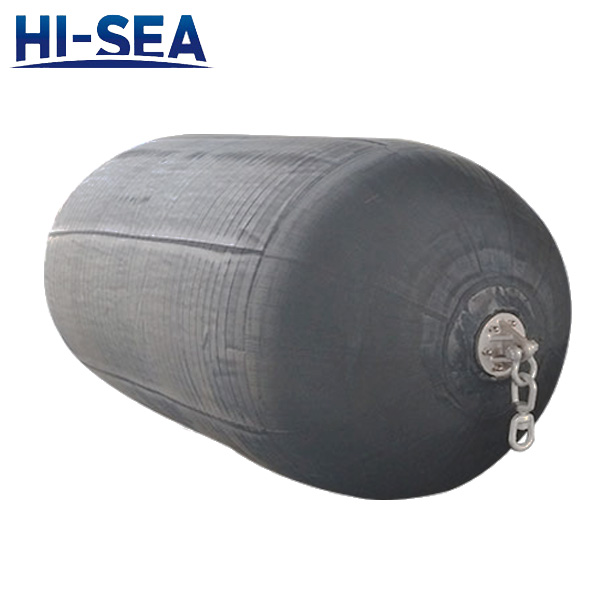

Introducción:
