Chamfer type laminated dock fenders are designed as rectangular profile with two chamfer corner for each sections. They are manufactured with all installation hangers built into each unit, which prepared for bolting to concrete fascia or welding to steel. The fender units can be installed vertically or horizontally or a combination of both as standard type. Chamfer type laminated dock fenders are the most economical alternative to molded rubber and timber fenders with the equivalent functions. Pre-curved corner sections are available on request.

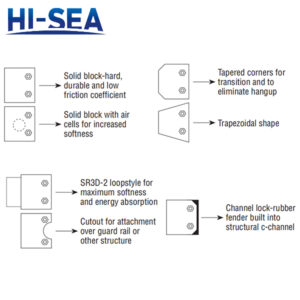

The sizes and softness can vary to satisfy particular design requirements. The available options are as following:
Standard sizes:
| A |
B |
C |
| 6″ to 39″ |
10″ to 120″ |
12″ to 240″ |
Funciones:
- Various installation methods
- Various sizes and softness available
- Optional pre-curved corner sections
- Easy to install by bolting to concrete fascia or welding to steel
- Most economical alternative to molded rubber and timber fenders
Attachment system details:
Funciones of attachment system:
- Each hanger is compressed onto steel rods at required intervals between laminated rubber sections.
- Fender can float and work independently for ease of attachment to damaged and irregular surfaces.
- The system allows for increased movement of fender.
