D Tipo de guardabarros de goma Dibujo y dimensiones:
| Modelo |
H |
B |
L |
n |
Q |
C |
A |
D |
d |
| D200X200XL |
200 |
200 |
1000 |
3 |
350 |
150 |
50 |
55 |
28 |
| D200X200XL |
1500
|
3 |
600 |
150 |
50 |
55 |
28 |
| D200X200XL |
4 |
400 |
150 |
50 |
55 |
28 |
| D200X200XL |
5 |
325 |
100 |
50 |
55 |
28 |
| D300X300XL |
300 |
300 |
1000 |
3 |
350 |
150 |
40 |
65 |
32 |
| D300X300XL |
1500
|
3 |
600 |
150 |
40 |
65 |
32 |
| D300X300XL |
4 |
400 |
150 |
40 |
65 |
32 |
| D300X300XL |
5 |
325 |
100 |
40 |
65 |
32 |
| D300X360XL |
300 |
360 |
1000 |
3 |
350 |
150 |
40 |
65 |
32 |
| D300X360XL |
1500
|
3 |
600 |
150 |
40 |
65 |
32 |
| D300X360XL |
4 |
400 |
150 |
40 |
65 |
32 |
| D300X360XL |
5 |
325 |
100 |
40 |
65 |
32 |
| D400X400XL |
400 |
400 |
1000 |
3 |
350 |
150 |
55 |
65 |
32 |
| D400X400XL |
1500 |
4 |
400 |
150 |
55 |
65 |
32 |
| D500X500XL |
500 |
500 |
1000 |
3 |
350 |
150 |
90 |
97 |
45 |
| D500X500XL |
1500
|
3 |
600 |
150 |
90 |
97 |
45 |
| D500X500XL |
4 |
400 |
150 |
90 |
97 |
45 |
| D500X500XL |
5 |
325 |
100 |
90 |
97 |
45 |
|
NOTA (unidades:milímetro)
|
El plano y las cotas son de referencia. Otras especificaciones también están disponibles. Póngase en contacto con nosotros para obtener información detallada.
La lista de rendimiento de D Tipo Guardabarros de goma:
| Modelo |
Deflexión nominal(%) |
Rendimiento |
| R(Kn) |
Tolerancia |
E(KN/M) |
Tolerancia(%) |
| D200X200XL |
50 |
147.0 |
±10 |
5.1 |
±10 |
| D300X300XL |
294.3 |
11.8 |
| D300X360XL |
323.7 |
13.7 |
| D400X400XL |
382.6 |
19.6 |
| D500X500XL |
451.3 |
31.4 |
| NOTA: FUERZA DE REACCIÓN(R) ABSORCIÓN DE ENERGÍA(E) |

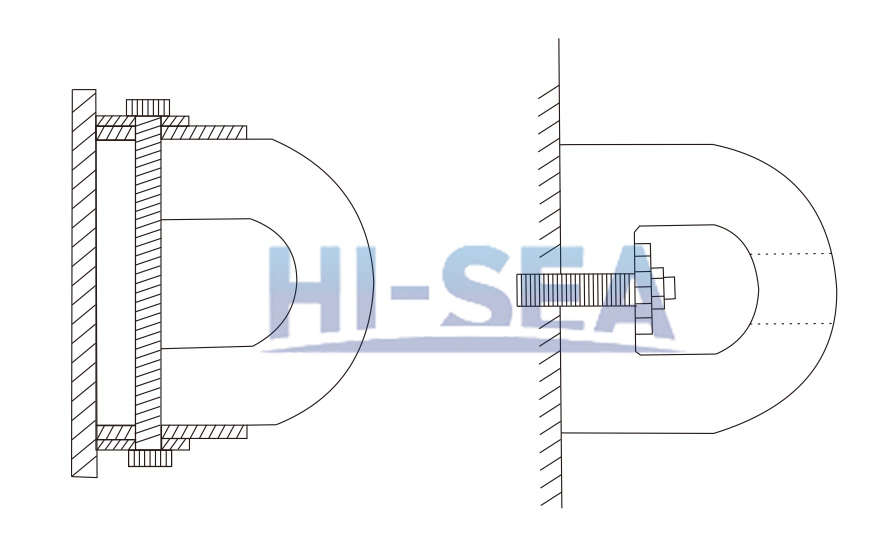

Instalación de D Type Rubber Fenders:

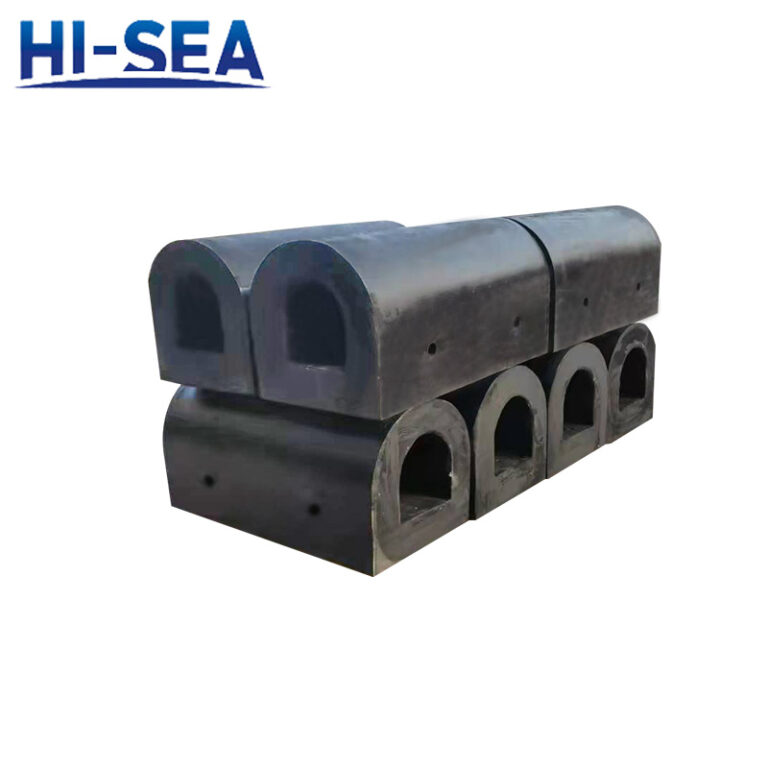

D Type Rubber Fenders in Factory:
Aplicación de D Type Rubber Fenders:
Introducción:
D type rubber fender is time-tested type fender. It’s single piece moulding. Reasonable energy abortion and reaction force make it applicable in many places. Flexible and easy installation is another advantage of it. It is especially suitable for frame type docks. As time goes by, D fender also evolves into many different type, such as DD type, DO type, Solid D type. They are designed to meet different requirements more specifically.
Accesorios y fijaciones:
- Perno de anclaje
- Bolt and nut
