Corner V Fender Drawing and Dimensions:
| H |
L |
W |
PW |
w |
ED |
J |
Anchors/Bolts |
| 150 |
750+750 |
300 |
240 |
98 |
100 |
400 |
8 |
| 200 |
750+750 |
400 |
320 |
130 |
100 |
350 |
8 |
| 250 |
810+810 |
500 |
400 |
162 |
130 |
420 |
8 |
| 300 |
700+700 |
600 |
480 |
190 |
140 |
360 |
8 |
| 800 |
1900+1900 |
1500 |
1300 |
640 |
250 |
650 |
12 |
|
NOTA (unidades:milímetro)
|
El plano y las cotas son de referencia. Otras especificaciones también están disponibles. Póngase en contacto con nosotros para obtener información detallada.
Installation of Corner V Fender:
Application of Corner V Fender:
Introducción:

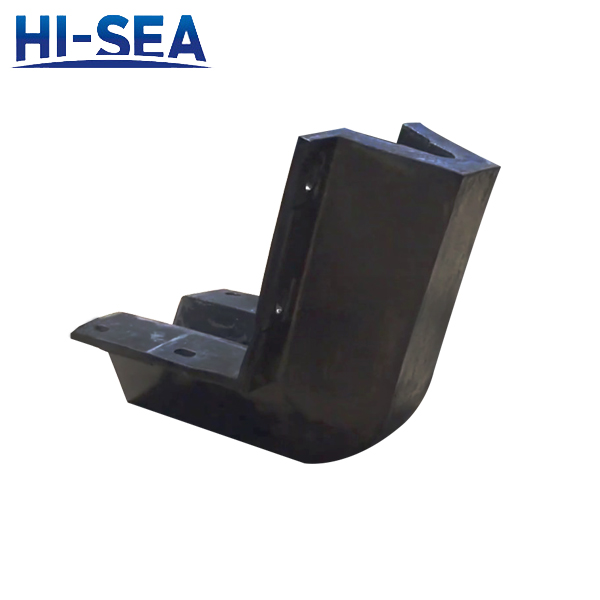

Corner v fender is also called corner arch fender. It’s economical and extensively used to protect corners of berthing structures and the entrances to channels. The strong and resilient rubber material ensures long-time protection to the structure. Corner fender is the most economical choice if your dock corners need protection. with reasonable energy absorption and reaction force, this fender can take effects in most cases.
Accesorios y fijaciones:
- Pernos de anclaje
- Bolts and nuts
