Corner GD Type Fender Drawing and Dimensions:
| H |
N |
B |
B1 |
h |
C |
L |
| 300 |
200 |
540 |
430 |
40 |
150 |
BESPOKE |
| 400 |
300 |
600 |
490 |
40 |
150 |
BESPOKE |
|
NOTA (unidades:milímetro)
|
El plano y las cotas son de referencia. Otras especificaciones también están disponibles. Póngase en contacto con nosotros para obtener información detallada.

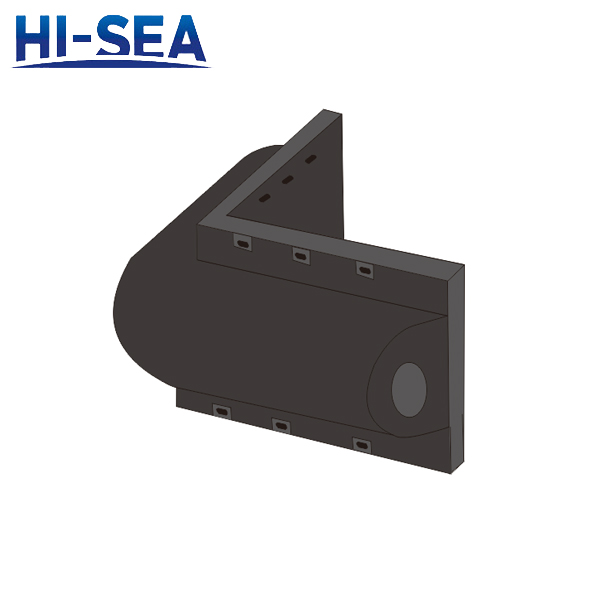

Installation of Corner GD Type Fender:
Introducción:
Corner GD type fender is another type of corner fender. This fender has similar two-raw anchor holes to corner V fender. Por lo tanto, they both have strong anchoring force. Its simple design also ensures that it is economical. All these corner fenders are used to protect corners of berthing structures and the entrances to channels. Compared with corner D fender, corner GD type fender is the better alternative for corner V fender for the similar fixing design.
Accesorios y fijaciones:
Pernos de anclaje
Bolts and nuts
