Corner D Fender Drawing and Dimensions:
| H |
L |
ED |
J |
Anchors/Bolts |
| 300 |
1000+1000 |
250 |
300 |
6 |
| 500 |
1150+1150 |
350 |
300 |
6 |
|
NOTA (unidades:milímetro)
|
El plano y las cotas son de referencia. Otras especificaciones también están disponibles. Póngase en contacto con nosotros para obtener información detallada.
Installation of Corner D Fender:
Introducción:

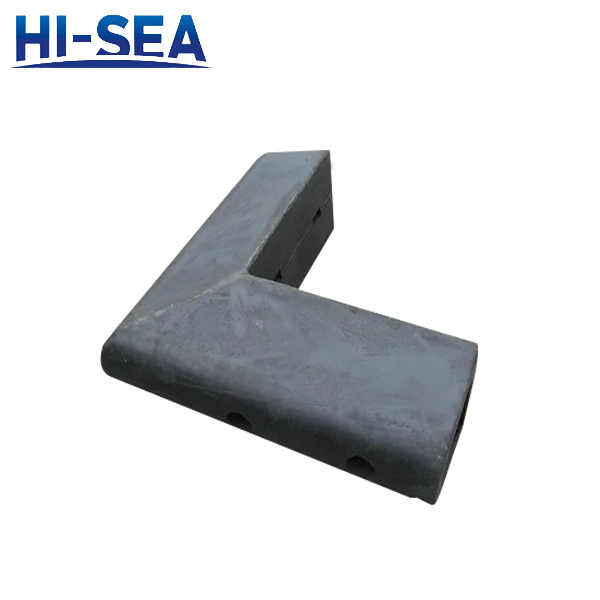

Corner D fender is one type of corner fender. As corner V fender, it is also economical and extensively used to protect corners of berthing structures and the entrances to channels. Except for the profile, they have merely the same functions and physical quality. In most cases, this two can be regarded as alternative for each other. However, it must be pointed out that corner v fender has better anchoring force because of double-row anchor holes.
Accesorios y fijaciones:
- Pernos de anclaje
- Bolts and nuts
